Day 25: Configuration Pairing Logic and Equivalence Classes

The Problem: Complementary Segments Need Alignment

Scenario: Your classification system has complementary segment pairs:

• Premium / Standard (membership tier)
• Verified / Unverified (validation status)
• Enterprise / Consumer (customer type)

Challenge: Each pair must have:

1. Consistent structure — Same parameters defined
2. Logical completeness — Every entity falls into one category
3. Aligned configurations — Compatible handling logic

Question: How do we formally define and validate these pairings?

Equivalence Relations: The Foundation

What is an Equivalence Relation?

An equivalence relation ∼ on a set S satisfies three properties:

1. Reflexive: a ∼ a (every element relates to itself)
2. Symmetric: If a ∼ b, then b ∼ a
3. Transitive: If a ∼ b and b ∼ c, then a ∼ c

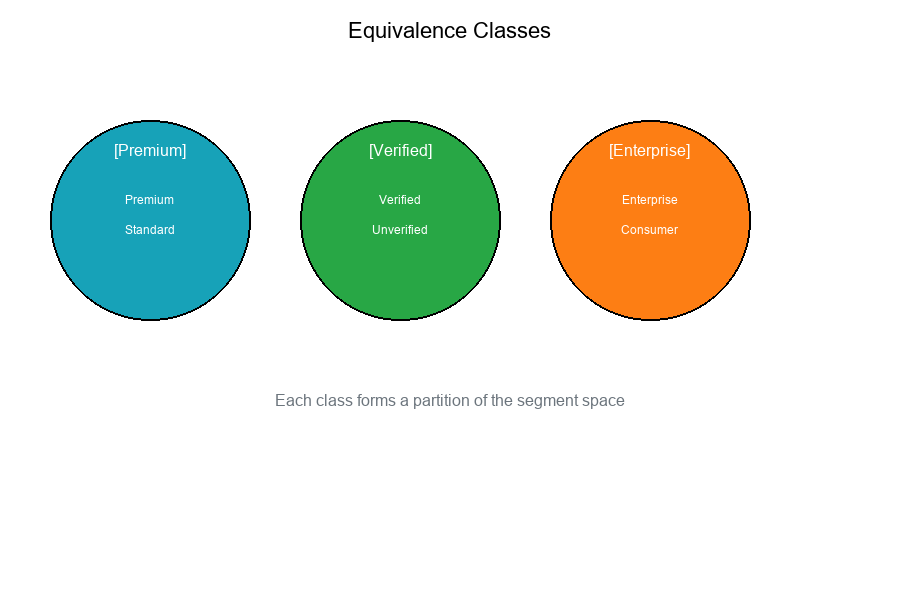

Equivalence Classes

An equivalence class [a] contains all elements equivalent to a:

[a] = { x ∈ S : x ∼ a }

Key Property: Equivalence classes partition the set:

• Every element belongs to exactly one class
• Classes are disjoint (no overlap)
• Union of all classes = entire set

Example: Segment Pairing

Set S: All possible segment configurations

Relation ∼: "is a complement of"

Equivalence Classes:

[Premium] = { Premium, Standard }
[Verified] = { Verified, Unverified }
[Enterprise] = { Enterprise, Consumer }

Visual Example:

Pairing Consistency

What is Pairing Consistency?

Pairing consistency ensures that paired segments have compatible configurations.

Requirements:

1. Same parameter set — Both segments define the same parameters
2. Complementary coverage — Together they cover all cases
3. No contradictions — Rules don't conflict

Formal Definition

Let P = (A, B) be a pair of complementary segments.

Consistency Conditions:

1. params(A) = params(B)  (same parameter names)
2. A ∩ B = ∅               (mutually exclusive)
3. A ∪ B = Universe        (collectively exhaustive)

Example: Premium vs Standard

Premium Configuration:

premium_config = {
'min_membership_days': 180,  # days
'score_low': 0.3,
'score_high': 0.7,
'priority_levels': ['Low', 'Medium', 'High']
}

Standard Configuration:

standard_config = {
'min_membership_days': 0,    # days (different value, same param)
'score_low': 0.2,            # lower score (more conservative)
'score_high': 0.6,
'priority_levels': ['Low', 'Medium', 'High']  # same levels
}

Consistency Check:

• Same parameters defined
• Mutually exclusive (days < 180 vs days ≥ 180)
• Covers all members

Visual Example:

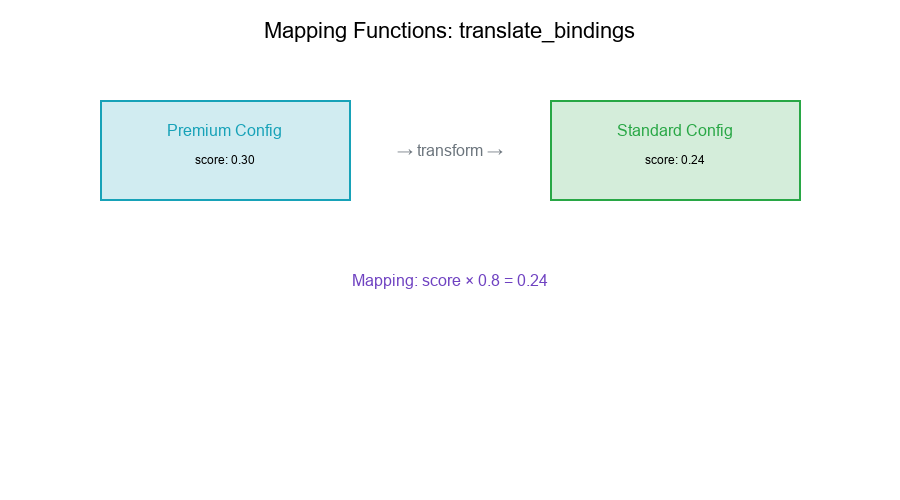

Mapping Functions: Aligning Parameters

The Role of Mapping Functions

Mapping functions translate parameters between paired segments to ensure alignment.

Purpose:

• Handle naming differences
• Apply transformations
• Fill in missing values

translate_bindings Function

def translate_bindings(source_config, target_segment, mapping_rules):
"""
Translate configuration from source to target segment.

Parameters:
- source_config: Configuration dictionary
- target_segment: Target segment name
- mapping_rules: Dictionary of parameter mappings

Returns:
- Translated configuration for target segment
"""
translated = {}

for param, value in source_config.items():
if param in mapping_rules:
rule = mapping_rules[param]
new_param = rule.get('rename', param)
transform = rule.get('transform', lambda x: x)
translated[new_param] = transform(value)
else:
translated[param] = value

return translated

Example: Parameter Mapping

Mapping Rules:

mapping_rules = {
'score_low': {
'rename': 'score_low',
'transform': lambda x: x * 0.8  # Standard gets 80% of score
},
'score_high': {
'rename': 'score_high',
'transform': lambda x: x * 0.9  # Standard gets 90% of score
}
}

Application:

premium = {'score_low': 0.30, 'score_high': 0.70}
standard = translate_bindings(premium, 'Standard', mapping_rules)
# Result: {'score_low': 0.24, 'score_high': 0.63}

Visual Example:

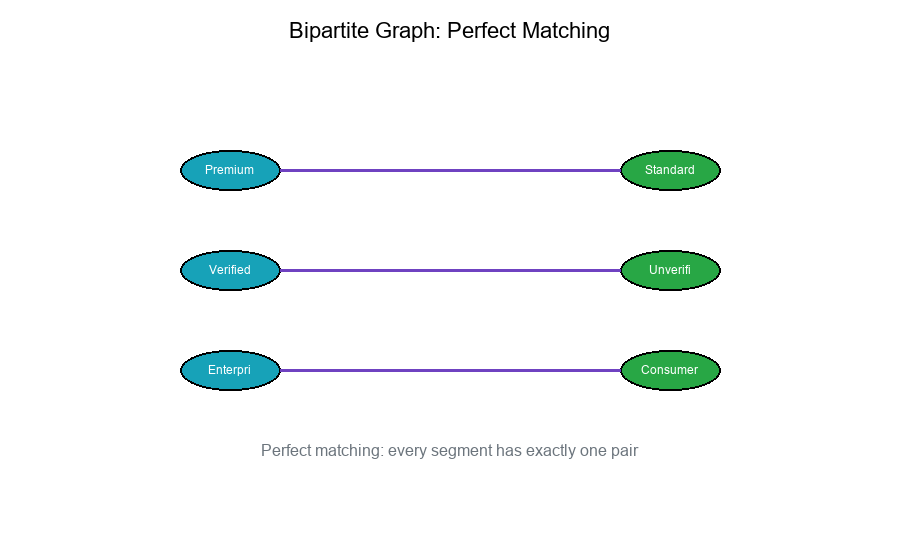

Bipartite Graph Matching

Visualizing Pairings as Graphs

Bipartite graph: A graph where vertices can be divided into two disjoint sets, with edges only between sets.

For segment pairing:

• Set A: Primary segments (Premium, Verified, Enterprise)
• Set B: Complement segments (Standard, Unverified, Consumer)
• Edges: Pairing relationships

Perfect Matching

A perfect matching in a bipartite graph:

• Every vertex in A is matched to exactly one vertex in B
• Every vertex in B is matched to exactly one vertex in A
• No unmatched vertices

For segment pairing: A perfect matching ensures every segment has exactly one complement.

Example: Segment Matching

Primary Segments      Complement Segments

Premium     ←→  Standard
Verified    ←→  Unverified
Enterprise  ←→  Consumer

Visual Example:

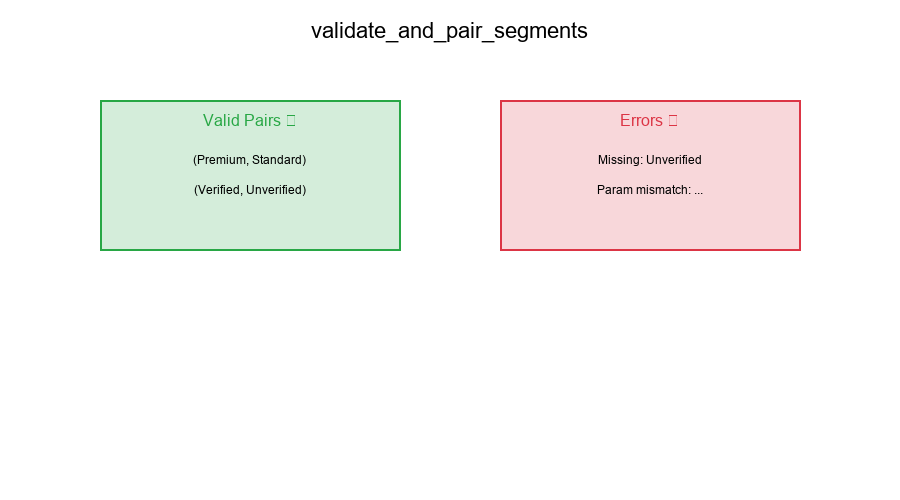

validate_and_pair_segments Function

Purpose

The validate_and_pair_segments function:

1. Validates that all required pairs exist
2. Checks consistency between paired segments
3. Identifies missing or orphan segments
4. Returns validated pairings

Implementation Concept

def validate_and_pair_segments(segment_configs, pairing_rules):
"""
Validate and pair segment configurations.

Parameters:
- segment_configs: Dict of segment -> config
- pairing_rules: List of (primary, complement) tuples

Returns:
- validated_pairs: List of validated (primary, complement) pairs
- errors: List of validation errors
"""
validated_pairs = []
errors = []

for primary, complement in pairing_rules:
# Check both segments exist
if primary not in segment_configs:
errors.append(f"Missing primary segment: {primary}")
continue
if complement not in segment_configs:
errors.append(f"Missing complement segment: {complement}")
continue

# Check parameter consistency
primary_params = set(segment_configs[primary].keys())
complement_params = set(segment_configs[complement].keys())

if primary_params != complement_params:
missing = primary_params - complement_params
extra = complement_params - primary_params
errors.append(f"Parameter mismatch: {primary}/{complement}")
errors.append(f"  Missing in complement: {missing}")
errors.append(f"  Extra in complement: {extra}")
continue

# All checks passed
validated_pairs.append((primary, complement))

return validated_pairs, errors

Example Usage

configs = {
'Premium': {'score': 0.5, 'levels': ['L', 'M', 'H']},
'Standard': {'score': 0.4, 'levels': ['L', 'M', 'H']},
'Verified': {'score': 0.6, 'levels': ['L', 'M', 'H']},
# Missing 'Unverified'!
}

rules = [('Premium', 'Standard'), ('Verified', 'Unverified')]

pairs, errors = validate_and_pair_segments(configs, rules)
# pairs: [('Premium', 'Standard')]
# errors: ['Missing complement segment: Unverified']

Visual Example:

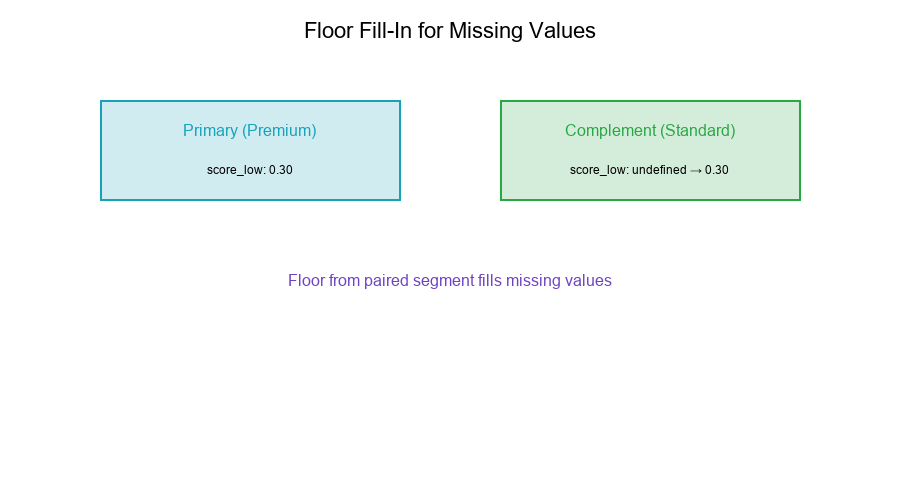

Exercise: Floor Fill-In for Missing Priority Levels

The Problem

Theorem: Consistent pairing implies well-defined floor fill-in for missing priority levels.

Claim: If segments A and B are consistently paired, and A defines parameters for priority levels {L, M, H}, then missing parameters in B can be filled using A's values as a floor.

Prove this property.

Solution

Step 1: Define Consistent Pairing

Segments A and B are consistently paired if:

• params(A) = params(B) (same parameter names)
• levels(A) = levels(B) (same priority categories)

Step 2: Define Floor Fill-In

For any parameter p and priority level r:

B[p, r] = B[p, r] if defined
= A[p, r] if B[p, r] undefined (floor from A)

Step 3: Prove Well-Definedness

Assume consistent pairing. For any (p, r):

Case 1: B[p, r] is defined

• Use B[p, r] directly

Case 2: B[p, r] is undefined

• By consistent pairing, A defines the same parameters
• Therefore A[p, r] is defined
• Use A[p, r] as floor

Step 4: Uniqueness

The fill-in is unique because:

• If B[p, r] defined → use it (no choice)
• If B[p, r] undefined → use A[p, r] (no ambiguity)

Step 5: Conclusion

Consistent pairing guarantees:

1. Every parameter in B has a well-defined value
2. The floor comes from the paired segment A
3. No ambiguity or undefined cases

∴ Floor fill-in is well-defined under consistent pairing. ∎

Practical Implication

def fill_missing_params(primary_config, complement_config):
"""
Fill missing parameters in complement using primary as floor.
"""
filled = complement_config.copy()

for param, value in primary_config.items():
if param not in filled or filled[param] is None:
filled[param] = value  # Floor fill-in

return filled

Visual Example:

Best Practices for Segment Pairing

1. Define Explicit Pairing Rules

Document which segments are paired:

PAIRING_RULES = [
('Premium', 'Standard'),
('Verified', 'Unverified'),
('Enterprise', 'Consumer'),
]

2. Validate Early and Often

Run validation on every configuration change:

pairs, errors = validate_and_pair_segments(configs, PAIRING_RULES)
if errors:
raise ConfigurationError(errors)

3. Use Mapping Functions for Transformations

Don't manually duplicate with modifications:

# Good: Use mapping
standard = translate_bindings(premium, 'Standard', rules)

# Bad: Manual duplication
standard = {'score': premium['score'] * 0.8, ...}

4. Document Fill-In Logic

Make floor fill-in explicit:

# Floor from Premium if Standard is missing
FLOOR_HIERARCHY = {
'Standard': 'Premium',
'Unverified': 'Verified',
}

5. Test Edge Cases

• Missing segments
• Extra (orphan) segments
• Parameter mismatches
• Null/undefined values

6. Version Control Pairings

Track changes to pairing rules alongside configuration changes.

Summary Table

Final Thoughts

Segment pairing logic ensures that complementary categories work together consistently. By applying equivalence relations and mapping functions, we create a robust system where:

• Every segment has a well-defined complement
• Parameters align across pairs
• Missing values have principled fill-in

Key Takeaways:

Equivalence relations group complementary segments into classes Pairing consistency ensures compatible configurations Mapping functions translate parameters systematically Bipartite matching visualizes and validates pairings validate_and_pair_segments operationalizes validation Floor fill-in handles missing values from paired segments

Pair your segments, align your configurations!
